The 432 Park Avenue Model Engineering Project was a structural engineering challenge that focused on scaling, load distribution, and stability of a high-rise development project. Designed as a five-story model, the project replicated the architectural essence of 432 Park Avenue, one of the tallest residential skyscrapers in New York City. The model was constructed using only wooden dowels, hot glue, and 10 six inch by six inch wooden square tiles as the primary structural material, emphasizing both the building’s distinctive grid-like design and its ability to withstand external forces.

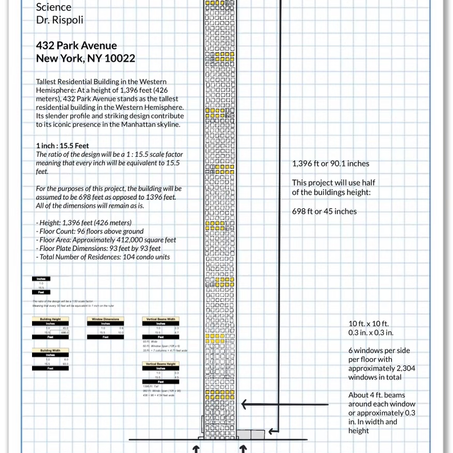

To ensure accuracy, the real-world dimensions of 432 Park Avenue—1,396 feet in height and 93 feet in width— were scaled down proportionally. The model stood at five stories tall, representing a fraction of the actual building while maintaining its signature square-shaped structure and evenly spaced window patterns. The grid-based framework of the tower, a defining feature of the real skyscraper, was carefully replicated using wooden dowels to maintain structural integrity.

The construction process followed a systematic engineering approach. The base was reinforced to provide stability, ensuring that the tower could support its own weight while resisting external pressure. Each level of the structure was built using a combination of vertical and horizontal dowels, forming a rigid lattice framework that mimicked the modular construction of the real building. The grid design not only reinforced the model’s strength but also allowed for even weight distribution, a key factor in real-world skyscraper engineering.
Throughout the project, several structural engineering principles were applied. The repetitive square framework played a crucial role in load distribution, preventing localized stress points that could compromise stability. The use of vertical dowels simulated the reinforced concrete columns in the actual building, ensuring vertical load-bearing efficiency. Additionally, the incorporation of cross-bracing techniques improved resistance against lateral forces such as wind and minor vibrations, increasing overall durability.

Despite its success, the project posed several challenges. Material selection limited the load capacity, as wooden dowels, while lightweight and easy to assemble, lacked the compressive strength of real concrete and steel. Maintaining perfect alignment of the dowels required precise measurements and adjustments to avoid structural imbalances. Future improvements could include more rigid connections between levels, additional bracing for stability, and refined detailing to enhance the model’s accuracy.

Reflecting on the project, the experience provided valuable insights into high-rise construction principles. The importance of modular design, even weight distribution, and lateral force resistance became evident throughout the building process. In real-world applications, engineers must consider material properties, environmental conditions, and advanced load-bearing techniques to create safe and efficient skyscrapers. Future models could benefit from a stronger base, more advanced bracing techniques, and enhanced material choices to better simulate real-world structural behaviors.

Overall, the 432 Park Avenue Model Engineering Project demonstrated the balance between aesthetic accuracy and structural integrity, reinforcing fundamental engineering concepts while showcasing the complexity of modern skyscraper design.
