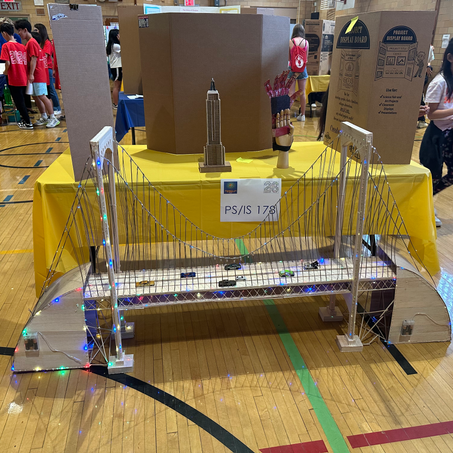

The Whitestone Bridge Model Engineering Project was a hands-on exploration of structural engineering, scaling calculations, and model construction. Building on prior engineering experience, the project involved designing and constructing a scaled model of the Whitestone Bridge using balsa wood, basswood sheets, wooden dowels, hot glue sticks, fairy lights, stainless steel wire, and toothpicks. Over the course of 56.67 hours and 19 days, careful planning and precise calculations ensured that the model accurately represented the original bridge’s structure while maintaining stability and functionality.

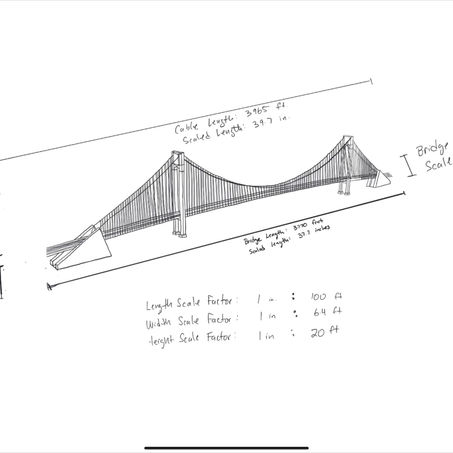

The actual dimensions of the Whitestone Bridge—3,700 feet in length, 377 feet in tower height, and 74 feet in width—were scaled down using a calculated scale factor. The final model measured 6.5 feet in length and 3 feet 3 inches in height, with a length scale of 1:569 and a height scale of 1:43. Achieving these proportions required extensive research and meticulous adjustments to maintain structural integrity while ensuring the bridge could support lightweight objects.

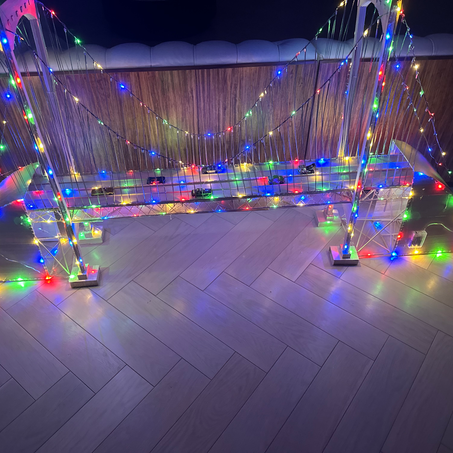

The construction process followed a structured engineering approach, beginning with material preparation, where balsa wood, dowels, and plywood were cut to scale. The base and main span were assembled using wooden dowels and hot glue, while the bridge towers were reinforced with square dowel rods and balsa sheets. To replicate the suspension cables, stainless steel wire was used, and additional details such as toothpicks were incorporated for realism. To enhance the model’s visual appeal, fairy lights were installed to simulate real bridge lighting. After assembly, the model was tested for weight distribution, load-bearing capacity, and stability. Impressively, it successfully supported objects weighing up to 7 pounds, including tools, model cars, and extra supplies.

Several key engineering principles were applied throughout the project. The inclusion of an "X" design improved weight distribution and prevented swaying in response to wind or seismic activity. Triangular trusses were strategically placed to evenly distribute weight, utilizing the natural strength of triangles to reinforce the structure. The suspension system balanced tension forces between the bridge deck and anchor points, while arches redirected forces downward and outward, providing essential stability for longer spans. These elements collectively enhanced the model’s overall durability and functionality.

Despite its success, the project presented several challenges. Material selection played a significant role in determining the model’s load capacity; while balsa wood provided flexibility and ease of use, its lightweight nature limited structural strength. Some trusses were miscalculated during construction, affecting stability and requiring modifications. Additionally, while the model closely resembled the real Whitestone Bridge, further refinements in detailing could enhance accuracy. Applying real-world engineering techniques, such as improved load-bearing strategies, would have further strengthened the structure.

Reflecting on the project, the experience highlighted the balance between aesthetics and functionality in engineering. Initially, the design prioritized appearance over structural strength, revealing the importance of testing for both form and function throughout the construction process. Ensuring blueprint accuracy and incorporating real-world engineering solutions would improve future models. Collaboration with mentors or professionals could provide valuable insights into refining the design and execution process.

Overall, the Whitestone Bridge Model Engineering Project provided a deep understanding of structural engineering, model construction, and scaling principles. It demonstrated how engineers must carefully balance form, function, and material constraints to create durable and efficient structures. Moving forward, refining material selection, improving precision in measurements, and incorporating more rigorous testing will contribute to even more accurate and resilient engineering models.
